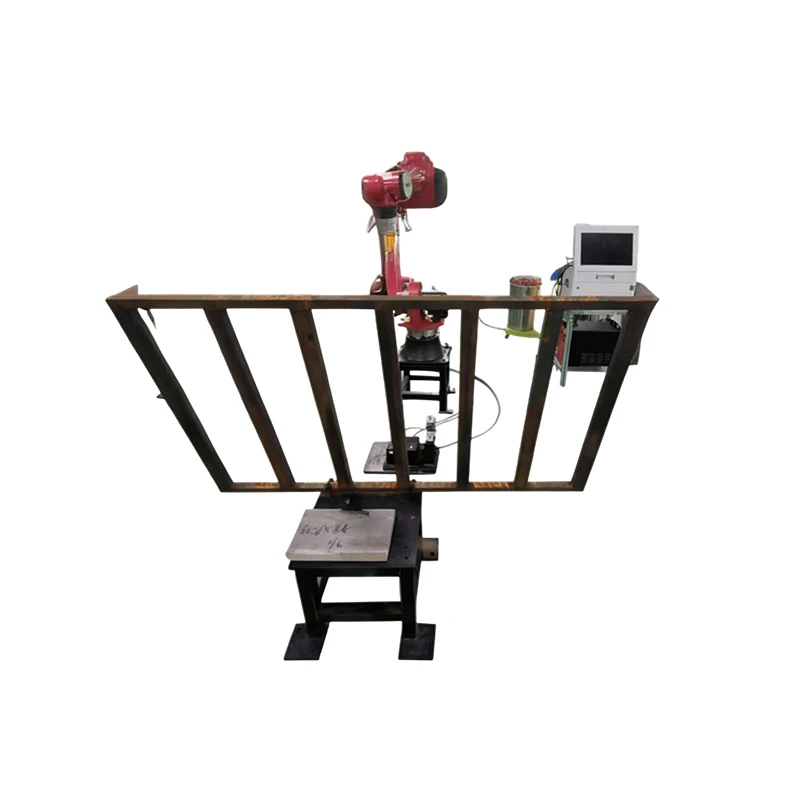

Spray Coating Robot yeAutomated Powder Coating Lines
Yedu yekupfapfaidza yekuputira robhoti inoshandiswa kuita otomatiki poda yekupotera yesimbi, mapurasitiki, uye anoumbwa workpieces. Inogona kubatanidzwa mumitsara yekugadzira yekuputira inoda inodzokororwa yekupfapfaidza nzira uye inodzoreka yekubatisa paramita.
Zvakanakira
- ± 0.05 mm inodzokorora kumira kune nzira dzinodzokororwa dzekupfeka
- 2131 mm ruoko kusvika kune yakakura workpiece yekuvhara
- Chirongwa{{0}sisitimu yekudzidzisa yemahara yekuchinjira chigadzirwa nekukurumidza
- Kudyisa hupfu yakatsiga kwe-cycle batch production
- Inoenderana ne conveyor uye inotenderera papuratifomu yekubatanidza
- Inotsigira kuenderera kwekuvhara kushanda mune yakagadziriswa kugadzirwa marongero
- 10 kg payload inotsigira electrostatic spray magungano uye tambo routing pasina kukanganisa kugadzikana kwekufamba
Kugadziriswa kweSystem Structure
- 6-axis indasitiri robhoti ruoko
- Electrostatic spray gun assembly
- Upfu uye hurongwa hwekudyisa
- Kudzidzisa pendant yekurekodha trajectory
- Kudzora kabati (kufamba kutonga + magetsi system)
- Yakagadziriswa workbench kana fixture chikuva
Main Technical Parameters
|
Parameter |
Tsanangudzo |
|
Arm Span |
2131 mm |
|
Dzokorora Positioning Kururama |
±0.05 mm |
|
Maximum Mutoro |
10 kg |
|
Power Capacity |
6.48 kVA |
|
Equipment Weight |
Approx. 230 kg |
|
Dziviriro Kirasi |
Wrist: IP54, Muviri: IP40 |
Inoshanda Kugadzira Mamiriro
Iyo midziyo inowanzo shandiswa mune anotevera ekugadzira setups:
- Powder coating mitsetse yesimbi structural parts
- Surface yekupedzisa mitsetse yedzimba dzemidziyo yemumba
- Industrial furniture coating process
- Aluminium profile coating mitsetse
- General maindasitiri simbi chikamu pamusoro kurapwa mitsetse
Material uye Coating Kuenderana
Iyo sisitimu inowirirana neinotevera workpiece zvinhu:
- Inotonhora-simbi yakakungurutswa
- Galvanized steel
- Aluminium alloy (semuenzaniso, 6063 profiles)
- ABS / PC mapurasitiki
- MDF uye enjiniya nzvimbo dzehuni
Inoenderana poda coating mhando dzinosanganisira:
- Epoxy powder coatings
- Polyester powder coatings
- Fluorocarbon powder coatings
- Mabhanditi anoshanda (anti-kuora / mamiriro ekunze-anodzivirirwa / kupera kwekushongedza)
Project Configuration Support
Sistimu yekumisikidza inogona kugadziriswa zvichibva pane:
- Zviyero zveworkpiece uye geometry
- Zvido zvekugadzira
- Coating zvinhu mhando
- Mutsara uripo
- Automation yekubatanidza nzira
Kuti uwane quotation uye tekinoroji yekuongorora, iyo inotevera ruzivo inowanzodiwa:
- Workpiece mifananidzo kana mapikicha
- Zvinotarisirwa kugadzira
- Coating process zvinodiwa
- Mamiriro ekugadzira mutsara aripo
- Yakasarudzika nzira yekubatanidza
Minda Yekushandisa uye Zvishandiso Zvinoenderana
| Munda Wekushandisa | Typical Objects | Inoenderana Zvishandiso & Hupfu Mhando |
|---|---|---|
| Mudziyo Wepamba | Firiji/makasi emuchina wokuwachisa, air conditioner units, microwave liner, mabhesi okubikira mupunga. | Inotonhora-simbi yakakungurutswa, ABS, PC/ABS; Epoxy hupfu, polyester hupfu |
| Furniture & Home Furnishing | Fenicha mapanera (simbi/huni), mafuremu ewadhiropu, masiraidhi edhirowa, mibato yemagonhi, midziyo yekugezera. | Simbi yakagadziridzwa, huni hwakasimba, MDF; Matte polyester poda, huni hwekufambisa hupfu, Antibacterial poda |
| Kuvaka & Kushongedza | Aluminium gonhi/mahwindo profiles, maketeni emadziro emadziro, mafuremu egonhi remoto, sirin'i dzesimbi | 6063 aruminiyamu, galvanized simbi, ruvara simbi; Mamiriro ekunze-inodzivirira polyester poda, Fluorocarbon (UV-resistant), Dombo-seupfu |

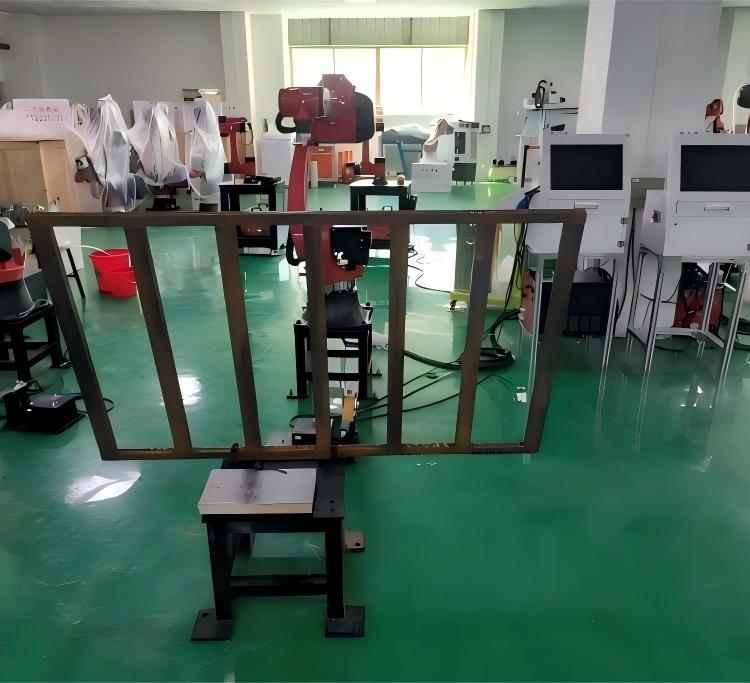

Pa-Site Simulation and Structural Close-Up Display

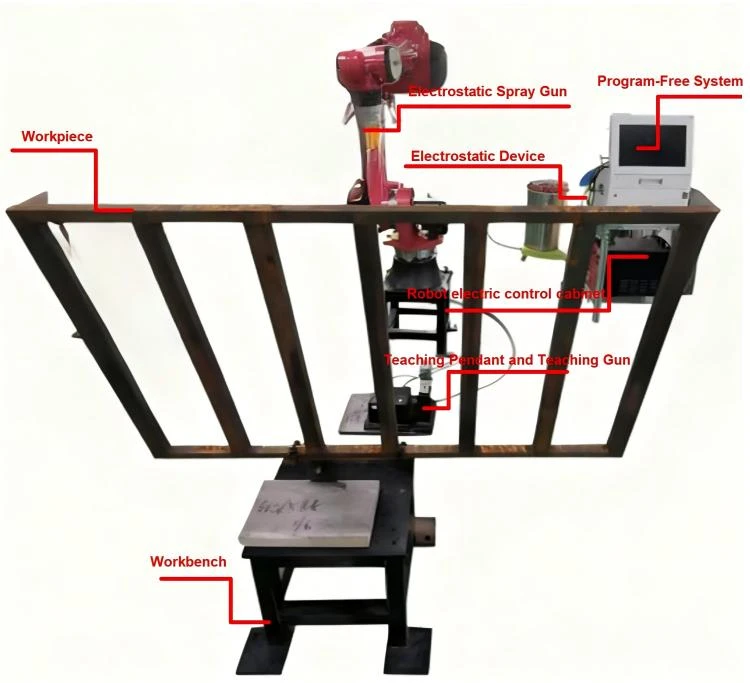

Mufananidzo 2.1 Pa-saiti Physical Object Diagram
Kudzidzisa Pendant uye Kudzidzisa Pfuti
Electrostatic Spray Pfuti
Electrostatic Sprayer
Chirongwa-Yemahara System
Robot electric control cabinet
Yakasimudzwa Kugadzirisa Base / Workbench
FAQ
